Need to replace one of the four cameras? This guide covers them all—front, rear, and everything in between. No matter which one you're swapping out, we’ll have you back to snapping photos in no time.
Motorola Edge 50 Neo repair
Camera Replacement Edge 50 Neo
35-45 MINUTES
VIDEO / PHOTO GUIDE
Parts Used
Tools & Consumables Required
Technician notes:
For two of the cameras, you'll need to carefully remove the copper and heat shielding—these components can be quite fragile. If you’re unsure about this step or think it may be tricky, we recommend ordering replacement covers at the same time. And don’t worry—any unused parts can be returned to us to support another repair!
For two of the cameras, you'll need to carefully remove the copper and heat shielding—these components can be quite fragile. If you’re unsure about this step or think it may be tricky, we recommend ordering replacement covers at the same time. And don’t worry—any unused parts can be returned to us to support another repair!

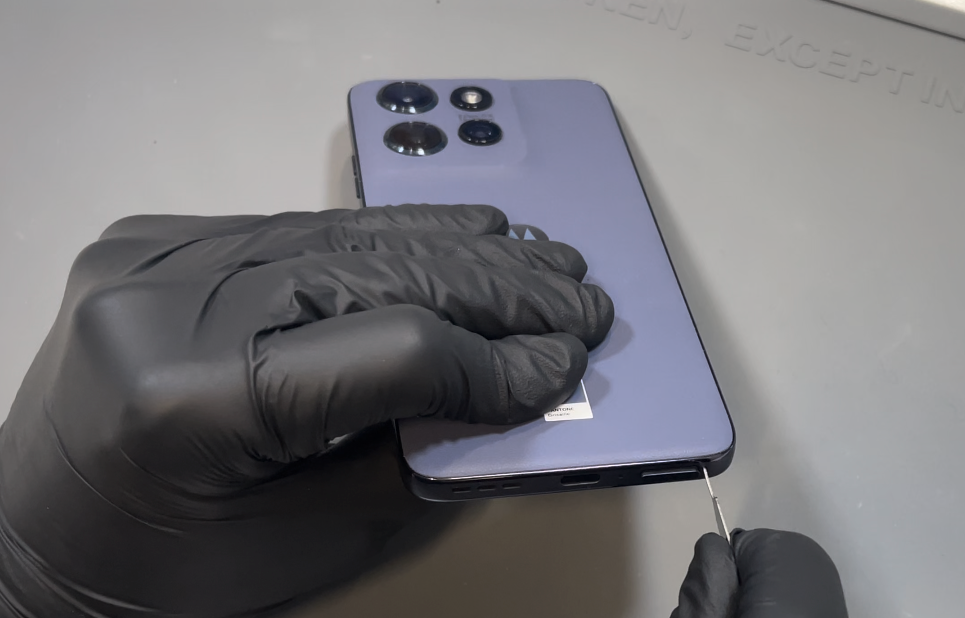

- Remove SIM Tray, Remove Battery Cover
Prepare your work area. Using the SIM eject tool, locate the release hole at the bottom of the phone and remove the SIM tray. Next, use a heat gun on a low setting or a hair dryer on medium to gently heat the back of the phone, focusing on the bottom edge.
Once warmed, use a plastic pry tool or blade to carefully create a gap between the battery cover and the phone frame. When a gap appears, insert the card tool. Continue applying gentle heat as you work the tool around the phone in a counter-clockwise direction, keeping the card inserted no more than 1–2 cm to avoid internal damage.
Once the adhesive seal is loosened, gently wriggle the battery cover to break any remaining adhesive and lift it away from the phone.
- Sub Frame Removal

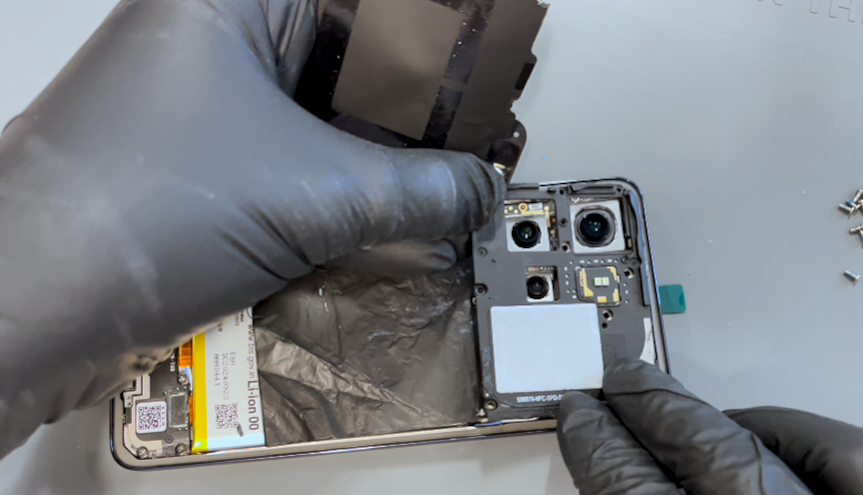

Using the card tool, gently separate the mild adhesive holding the wireless charging unit in place. Carefully lift and slide it aside while keeping it connected to the phone.

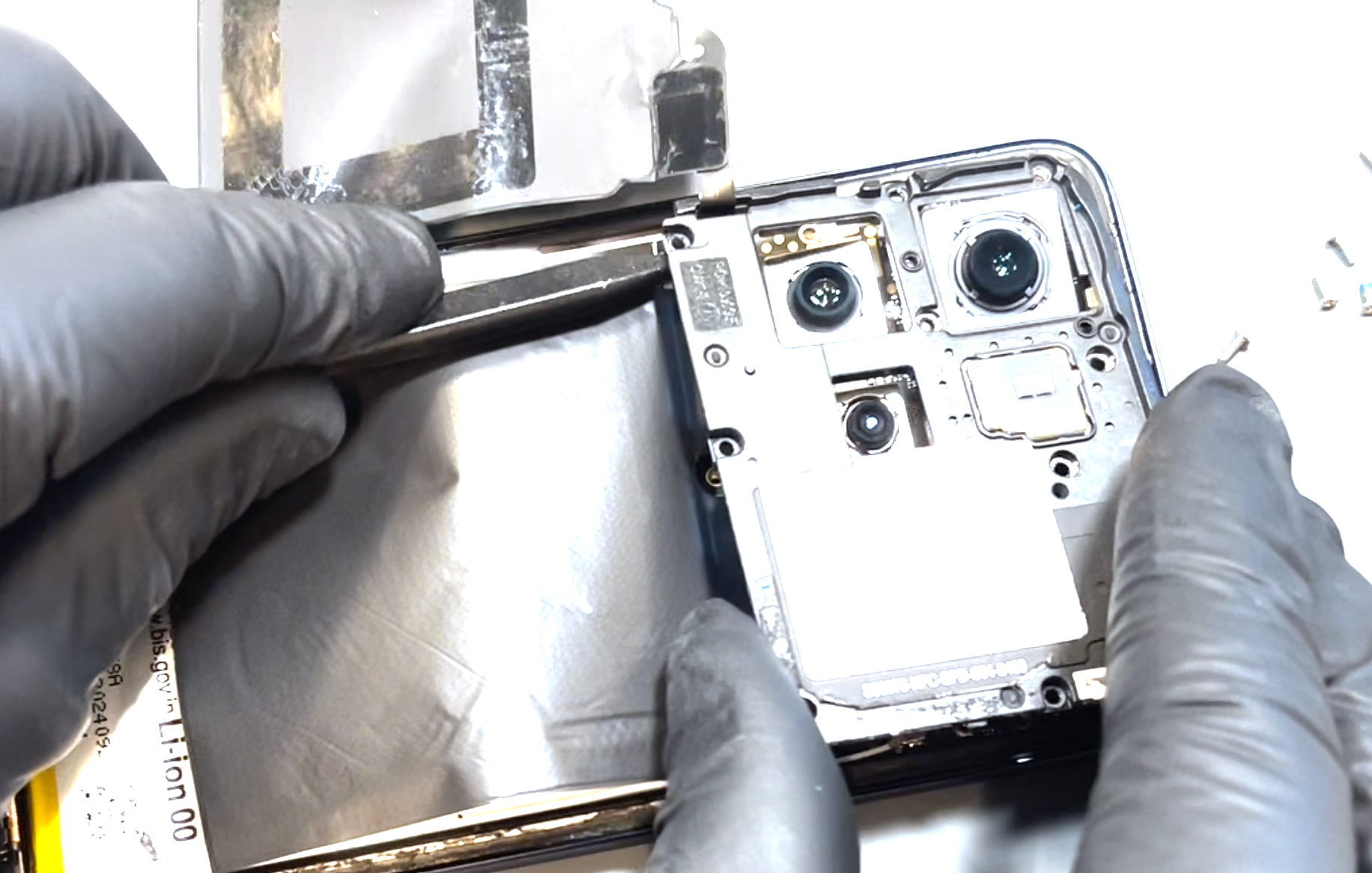

Next, remove the 10 screws from the top section of the frame. Use tweezers if needed to help lift them out. Once all screws are removed, use a plastic probe tool in the bottom-right corner of the frame to detach and lift it away. Set the frame aside.
With the shielding exposed, lift it up and disconnect the two outermost connectors—these are for the battery and must be removed before continuing with the repair.
- Camera Removal And Replacement (All)
Please read this step carefully. Depending on which camera needs replacing, you may not need to remove the motherboard.
If you're replacing the first rear camera, it can be disconnected and removed immediately—simply release the connector and set it aside.
Next, use a probe tool to carefully peel back the black and copper shielding. This material is fragile and can tear easily, so proceed with caution. Once the shielding is lifted, the front-facing camera can be removed.
For the remaining two cameras, we recommend removing the motherboard. Start by disconnecting the two coaxial cables—gently lift from beneath the metal neck of each antenna using a probe tool. Then disconnect the remaining two flex connections on the motherboard.
Using the probe tool, gently pry up from the bottom-right corner of the motherboard to lift it out. Clean any remaining thermal paste from the board once removed.
With the motherboard out, the main rear camera can now be disconnected and lifted away. Flip the motherboard over to access the shielding covering the final camera. This side provides a better surface to carefully peel the shielding and access the last module.
To install or replace any of the camera modules, simply connect each one in its respective place.
Before reinstalling the motherboard, clean off any remaining thermal paste from the phone’s frame and apply fresh paste to the indicated areas. The motherboard will slot back into a recess at the top of the chassis—hinge it in carefully, ensuring that no cables are trapped underneath.
Once in place, reconnect the two flex cables and all three coaxial cables (the color of each is printed beside its connector on the board). Use tweezers to position each coaxial connector, then apply light pressure until it clicks into place.
Finally, stick the shielding back down over the camera connectors and earpiece to complete the reassembly.
- Sub Frame Install
Reconnect the battery terminals (the far left and right flex cables), then rest the sub-frame in place. Apply even pressure around the edges—you’ll hear it snap securely into position.
Once the frame is seated, reinstall all screws to secure it. Finally, position the wireless charging coil back in place, making sure the alignment nipple on the frame fits into the corresponding hole in the flex cable for proper positioning.
- Battery Cover Installation
Ensure the phone’s frame is clean and free from adhesive. If you've just replaced the screen, there's no need to clean the chassis. Light adhesive residue on the frame is acceptable, as long as there are no thick clumps you can feel with your finger. If you're reusing your old battery cover, make sure all old adhesive is completely removed before applying the new adhesive. Once both surfaces are clean, peel the protective film from the battery cover adhesive to expose the sticky side. Loosely align the adhesive with the top edge and corners of the battery cover, resting it in place until you’re satisfied with the positioning. When aligned correctly, press along the adhesive with your fingers to help it bond, then allow it to rest for 5 minutes. After resting, carefully peel off the blue protective film to expose the adhesive—be sure not to accidentally lift the adhesive itself. If you’re installing a brand-new battery cover, remove the protective film from the inside of the camera lenses as well. Finally, press the battery cover into place and apply firm, even pressure around the entire edge of the phone until it feels securely sealed.
- Final Testing & Device Help App
Download and run Motorola Smart Assist to fully test your device and follow any required configuration.
